Measures fresh-process ONNX model-load cold start#

This example measures model loading in a new Python process for every sample. Unlike Measures loading and saving time for an ONNX model, it deliberately performs no warm-up and never combines these results with steady-state measurements.

end_to_end_ms includes Python interpreter startup, imports, and one model load. first_load_after_imports_ms starts immediately after the selected implementation has been imported in that new process and measures that one load. On POSIX platforms, peak_rss_kib reports the process high-water RSS during startup and loading.

A fresh process is not necessarily a cold filesystem cache: the operating system may retain model files and shared libraries in its page cache. Dropping that cache requires privileged, platform-specific operations, and is not done by this benchmark. The graph compares the average end-to-end and post-import load times; its error bars show the population standard deviation.

Use --model <path> to measure a supplied ONNX model. Without it, the example creates the same synthetic Gemm-chain model used by Measures loading and saving time for an ONNX model; --external writes its weights to a companion external-data file.

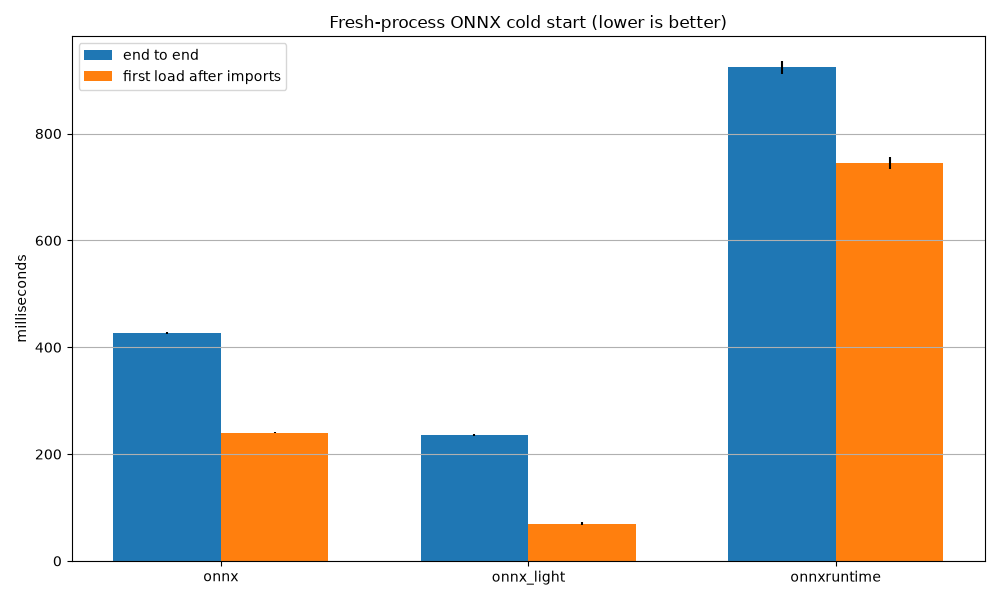

Fresh-process ONNX cold start (lower is better)

Fresh-process cold start (filesystem page cache may still be warm)
end_to_end_ms includes interpreter startup, imports, and one model load.
first_load_after_imports_ms includes only one load after imports.
sample=1 {"end_to_end_ms": 425.4239520005285, "first_load_after_imports_ms": 238.70498799988127, "implementation": "onnx", "peak_rss_kib": 3404664}
sample=2 {"end_to_end_ms": 427.4861840003723, "first_load_after_imports_ms": 240.86421300035, "implementation": "onnx", "peak_rss_kib": 3404664}
sample=3 {"end_to_end_ms": 429.8199859995293, "first_load_after_imports_ms": 240.42166300023382, "implementation": "onnx", "peak_rss_kib": 3404664}
sample=4 {"end_to_end_ms": 425.5738930005464, "first_load_after_imports_ms": 239.8237989991685, "implementation": "onnx", "peak_rss_kib": 3404664}
sample=5 {"end_to_end_ms": 426.3196239999161, "first_load_after_imports_ms": 240.64084399924468, "implementation": "onnx", "peak_rss_kib": 3404664}
sample=1 {"end_to_end_ms": 235.3512990002855, "first_load_after_imports_ms": 68.90069099972607, "implementation": "onnx_light", "peak_rss_kib": 3404664}
sample=2 {"end_to_end_ms": 235.3840729992953, "first_load_after_imports_ms": 68.31249700007902, "implementation": "onnx_light", "peak_rss_kib": 3404664}
sample=3 {"end_to_end_ms": 234.04339400076424, "first_load_after_imports_ms": 65.01619499977096, "implementation": "onnx_light", "peak_rss_kib": 3404664}
sample=4 {"end_to_end_ms": 237.03473800014763, "first_load_after_imports_ms": 72.55856200026756, "implementation": "onnx_light", "peak_rss_kib": 3404664}
sample=5 {"end_to_end_ms": 237.9688860000897, "first_load_after_imports_ms": 73.10357700043824, "implementation": "onnx_light", "peak_rss_kib": 3404664}
sample=1 {"end_to_end_ms": 919.7749160002786, "first_load_after_imports_ms": 741.9742749998477, "implementation": "onnxruntime", "peak_rss_kib": 3404664}
sample=2 {"end_to_end_ms": 904.5427860000927, "first_load_after_imports_ms": 727.1995310002239, "implementation": "onnxruntime", "peak_rss_kib": 3404664}
sample=3 {"end_to_end_ms": 939.245232999383, "first_load_after_imports_ms": 759.2179600005693, "implementation": "onnxruntime", "peak_rss_kib": 3404664}
sample=4 {"end_to_end_ms": 926.718250999329, "first_load_after_imports_ms": 748.7496600006125, "implementation": "onnxruntime", "peak_rss_kib": 3404664}
sample=5 {"end_to_end_ms": 928.9528569997856, "first_load_after_imports_ms": 747.9572320007719, "implementation": "onnxruntime", "peak_rss_kib": 3404664}

import argparse
import json
import os
import pathlib
import statistics
import subprocess
import sys
import tempfile
import time

N_INIT = 40
DIM = 256 if os.environ.get("UNITTEST_GOING") == "1" else 2048
IMPLEMENTATIONS = ("onnx", "onnx_light", "onnxruntime", "onnx_ir")
DEFAULT_IMPLEMENTATIONS = IMPLEMENTATIONS[:3]


def make_model(n_init: int = N_INIT, dim: int = DIM):
    """Returns a synthetic ONNX model with Gemm initializers."""
    import numpy as np
    import onnx_light.onnx as onnxl
    import onnx_light.onnx.helper as oh
    import onnx_light.onnx.numpy_helper as onh

    initializers = []
    nodes = []
    inputs = [oh.make_tensor_value_info("X", onnxl.TensorProto.FLOAT, [None, dim])]
    previous = "X"
    for index in range(n_init):
        weight_name = f"W{index}"
        output_name = f"Y{index}"
        initializers.append(
            onh.from_array(np.random.randn(dim, dim).astype(np.float32), name=weight_name)
        )
        nodes.append(oh.make_node("Gemm", [previous, weight_name], [output_name], transB=1))
        previous = output_name
    graph = oh.make_graph(
        nodes,
        "cold_start_bench_graph",
        inputs,
        [oh.make_tensor_value_info(previous, onnxl.TensorProto.FLOAT, [None, dim])],
        initializer=initializers,
    )
    return oh.make_model(graph, opset_imports=[oh.make_opsetid("", 18)], ir_version=9)


def _save_default_model(model, directory: str, external: bool) -> str:
    """Saves a synthetic model and returns its ONNX path."""
    import onnx_light.onnx as onnxl

    path = os.path.join(directory, "bench.onnx")
    if external:
        onnxl.save(
            model, path, save_as_external_data=True, location="bench.onnx.data", size_threshold=0
        )
    else:
        onnxl.save(model, path)
    return path


def _load_once(implementation: str, model_path: str) -> None:
    """Loads a model once using the requested implementation.

    Constructs and discards an ``onnxruntime.InferenceSession`` for the
    ``onnxruntime`` implementation.
    """
    if implementation == "onnx":
        import onnx

        onnx.load(model_path)
    elif implementation == "onnx_light":
        import onnx_light.onnx

        onnx_light.onnx.load(model_path, load_external_data=True)
    elif implementation == "onnxruntime":
        import onnxruntime

        options = onnxruntime.SessionOptions()
        options.graph_optimization_level = onnxruntime.GraphOptimizationLevel.ORT_DISABLE_ALL
        onnxruntime.InferenceSession(model_path, sess_options=options)
    elif implementation == "onnx_ir":
        import onnx_ir

        onnx_ir.load(model_path)
    else:
        raise ValueError(f"Unknown implementation {implementation!r}.")


def _peak_rss_kib() -> int | None:
    """Returns peak RSS in KiB when the platform provides resource.getrusage."""
    if os.name == "nt":
        return None
    import resource

    rss = resource.getrusage(resource.RUSAGE_SELF).ru_maxrss
    return rss // 1024 if sys.platform == "darwin" else rss


def _worker(implementation: str, model_path: str) -> None:
    """Synchronizes with the parent then loads the model exactly once."""
    # Import separately so the parent can distinguish imports from the first load.
    if implementation == "onnx":
        import onnx  # noqa: F401
    elif implementation == "onnx_light":
        import onnx_light.onnx  # noqa: F401
    elif implementation == "onnxruntime":
        import onnxruntime  # noqa: F401
    elif implementation == "onnx_ir":
        import onnx_ir  # noqa: F401
    else:
        raise ValueError(f"Unknown implementation {implementation!r}.")
    print("READY", flush=True)
    sys.stdin.readline()
    start = time.perf_counter()
    _load_once(implementation, model_path)
    print(
        json.dumps(
            {
                "first_load_after_imports_ms": (time.perf_counter() - start) * 1e3,
                "peak_rss_kib": _peak_rss_kib(),
            }
        ),
        flush=True,
    )


def _run_sample(implementation: str, model_path: str) -> dict:
    """Runs one implementation in a fresh process and returns its measurements."""
    command = [
        sys.executable,
        str(pathlib.Path(_run_sample.__code__.co_filename).resolve()),
        "--worker",
        implementation,
        model_path,
    ]
    start = time.perf_counter()
    process = subprocess.Popen(
        command, stdin=subprocess.PIPE, stdout=subprocess.PIPE, stderr=subprocess.PIPE, text=True
    )
    assert process.stdin is not None
    assert process.stdout is not None
    assert process.stderr is not None
    ready = process.stdout.readline().strip()
    if ready != "READY":
        _, stderr = process.communicate()
        raise RuntimeError(f"{implementation} did not initialize: {stderr.strip()}")
    process.stdin.write("\n")
    process.stdin.flush()
    payload = process.stdout.readline()
    _, stderr = process.communicate()
    if process.returncode:
        raise RuntimeError(f"{implementation} failed: {stderr.strip()}")
    result = json.loads(payload)
    result["implementation"] = implementation
    result["end_to_end_ms"] = (time.perf_counter() - start) * 1e3
    return result


def _parse_args(args: list[str] | None = None) -> argparse.Namespace:
    """Parses benchmark command-line arguments."""
    parser = argparse.ArgumentParser(description="Measures fresh-process ONNX model loading.")
    parser.add_argument("--model", help="Path to an existing ONNX model.")
    parser.add_argument(
        "--external", action="store_true", help="Store the synthetic model externally."
    )
    parser.add_argument(
        "--samples", type=int, default=5, help="Fresh-process samples per implementation."
    )
    parser.add_argument(
        "--implementations",
        nargs="+",
        choices=IMPLEMENTATIONS,
        default=DEFAULT_IMPLEMENTATIONS,
        help="Implementations to measure.",
    )
    parser.add_argument(
        "--worker", nargs=2, metavar=("IMPLEMENTATION", "MODEL"), help=argparse.SUPPRESS
    )
    return parser.parse_args(args)


def _plot_results(results: list[dict], png_path: str = "plot_onnx_cold_start.png"):
    """Plots average cold-start timings and saves the graph."""
    import matplotlib.pyplot as plt

    implementations = list(dict.fromkeys(result["implementation"] for result in results))
    end_to_end = [
        [
            result["end_to_end_ms"]
            for result in results
            if result["implementation"] == implementation
        ]
        for implementation in implementations
    ]
    first_load = [
        [
            result["first_load_after_imports_ms"]
            for result in results
            if result["implementation"] == implementation
        ]
        for implementation in implementations
    ]
    positions = range(len(implementations))
    width = 0.35
    _, axis = plt.subplots(figsize=(10, 6))
    axis.bar(
        [position - width / 2 for position in positions],
        [statistics.fmean(values) for values in end_to_end],
        width,
        yerr=[statistics.pstdev(values) for values in end_to_end],
        label="end to end",
    )
    axis.bar(
        [position + width / 2 for position in positions],
        [statistics.fmean(values) for values in first_load],
        width,
        yerr=[statistics.pstdev(values) for values in first_load],
        label="first load after imports",
    )
    axis.set(
        title="Fresh-process ONNX cold start (lower is better)",
        ylabel="milliseconds",
        xticks=list(positions),
        xticklabels=implementations,
    )
    axis.legend()
    axis.grid(axis="y")
    axis.figure.tight_layout()
    axis.figure.savefig(png_path)
    return axis


def main(args: list[str] | None = None) -> None:
    """Runs the cold-start benchmark."""
    parsed = _parse_args(args)
    if parsed.worker:
        _worker(*parsed.worker)
        return
    if parsed.samples < 1:
        raise ValueError("--samples must be at least one.")
    with tempfile.TemporaryDirectory(prefix="onnx_cold_start_") as directory:
        model_path = (
            os.path.abspath(parsed.model)
            if parsed.model
            else _save_default_model(make_model(), directory, parsed.external)
        )
        print("Fresh-process cold start (filesystem page cache may still be warm)")
        print("end_to_end_ms includes interpreter startup, imports, and one model load.")
        print("first_load_after_imports_ms includes only one load after imports.")
        results = []
        for implementation in parsed.implementations:
            for sample in range(parsed.samples):
                result = _run_sample(implementation, model_path)
                results.append(result)
                print(f"sample={sample + 1} {json.dumps(result, sort_keys=True)}")
        _plot_results(results)


if __name__ == "__main__":
    main()
