Benchmark the initialization steps: onnxruntime vs onnx-light#

Before a model can be run, both onnxruntime and onnx_light go through an initialization phase that turns a ModelProto into an object ready for inference. For onnxruntime this happens when the onnxruntime.InferenceSession is created: the graph is optimized, every node’s kernel is resolved and the weights are loaded. For onnx_light the equivalent step is the construction of ReferenceEvaluator, which prepares the persistent RuntimeContext used by every subsequent run() call.

This example measures that initialization time for both backends on the Qwen3-like model retrieved from the backend test cases through onnx_light.onnx.backend.collect_test_cases_by_name(). The backend model stores its large weights as shape/dtype metadata only, so this example first materializes random weights (both backends need real weight bytes to build a session) and then times the initialization step of each backend, printing a comparison table and a bar chart.

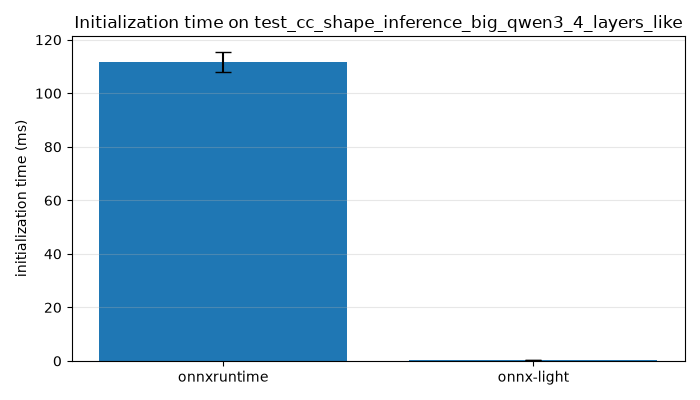

Initialization time on test_cc_shape_inference_big_qwen3_4_layers_like

-- get the model from the backend tests
-- materialized 39 weight initializer(s)
-- model has 393 nodes
-- serialized model size: 256,995,440 bytes
-- benchmark onnxruntime initialization
-- benchmark onnx-light initialization
       name   median      avg      min      max      std  median (ms)   avg (ms)   min (ms)   max (ms)  std (ms)
onnxruntime 0.111721 0.111550 0.106971 0.117620 0.003791   111.720762 111.549712 106.970839 117.619578  3.790678
 onnx-light 0.000482 0.000485 0.000427 0.000577 0.000054     0.481726   0.484520   0.426663   0.577441  0.054067

from __future__ import annotations

import os
import time

import matplotlib.pyplot as plt
import numpy as np
import onnxruntime
import pandas
from onnx_light.onnx import TensorProto
from onnx_light.onnx import inliner, load as ol_load, save as ol_save
from onnx_light.onnx.backend import collect_test_cases_by_name
from onnx_light.onnx.helper import tensor_dtype_to_np_dtype
from onnx_light.onnx.numpy_helper import from_array
from onnx_light.onnx.reference import ReferenceEvaluator

TEST_CASE_NAME = "test_cc_shape_inference_big_qwen3_4_layers_like"
OUTPUT_PREFIX = "bench_qwen3_init_benchmark"

# The documentation build runs every example with ``UNITTEST_GOING=1`` and
# should stay cheap, so a single measured iteration is enough there.
if os.environ.get("UNITTEST_GOING") == "1":
    N_ITER, N_WARMUP = 1, 0
else:
    N_ITER, N_WARMUP = 5, 1


def measure(name: str, fn, n: int = N_ITER, warmup: int = N_WARMUP) -> dict:
    """Runs *fn* with warm-up iterations and records timing statistics.

    Args:
        name: Benchmark name.
        fn: Callable to execute.
        n: Number of measured iterations.
        warmup: Number of non-measured warm-up iterations.

    Returns:
        A dictionary with the benchmark name and the median, average, minimum,
        maximum, and standard deviation of the measured durations in seconds.
    """

    for _ in range(max(0, warmup)):
        fn()
    times = []
    for _ in range(max(1, n)):
        start = time.perf_counter()
        fn()
        times.append(time.perf_counter() - start)
    values = np.array(times)
    return {
        "name": name,
        "median": float(np.median(values)),
        "avg": float(np.mean(values)),
        "min": float(np.min(values)),
        "max": float(np.max(values)),
        "std": float(np.std(values)),
    }


def initializer_is_metadata_only(initializer: TensorProto) -> bool:
    """Returns whether an initializer carries shape/dtype metadata but no data.

    The backend test model stores its large weights as metadata-only
    initializers (external references without a payload). Such an initializer
    has a non-empty shape but neither inline ``raw_data`` nor any populated
    typed data field.

    Args:
        initializer: The initializer to inspect.

    Returns:
        ``True`` when the initializer has elements to fill but no data yet.
    """

    element_count = 1
    for dim in initializer.dims:
        element_count *= int(dim)
    if element_count <= 0:
        return False
    if int(initializer.data_location) == int(TensorProto.EXTERNAL):
        return True
    if len(initializer.raw_data) > 0:
        return False
    typed_fields = (
        "float_data",
        "int32_data",
        "int64_data",
        "double_data",
        "uint64_data",
        "string_data",
    )
    return all(len(getattr(initializer, field)) == 0 for field in typed_fields)


def materialize_random_weights(model, seed: int = 0) -> int:
    """Fills every metadata-only initializer of *model* with random data.

    Both backends need real weight bytes to build a session, but the backend
    test model stores its large weights as metadata only. This replaces each
    such initializer in place with a random tensor of the declared shape and
    dtype, leaving initializers that already carry data untouched.

    Args:
        model: The ``ModelProto`` to modify in place.
        seed: Seed for the random number generator, for reproducibility.

    Returns:
        The number of initializers that were materialized.
    """

    rng = np.random.default_rng(seed)
    materialized = 0
    for initializer in model.graph.initializer:
        if not initializer_is_metadata_only(initializer):
            continue
        shape = tuple(int(dim) for dim in initializer.dims)
        np_dtype = tensor_dtype_to_np_dtype(initializer.data_type)
        if np.issubdtype(np_dtype, np.floating):
            values = rng.standard_normal(size=shape).astype(np_dtype) * np.array(
                0.02, dtype=np_dtype
            )
        else:
            values = np.zeros(shape, dtype=np_dtype)
        # The declared shape and dtype are already correct, so only the raw
        # bytes need to be filled in place. ``CopyFrom`` is avoided on purpose
        # because it appends to (rather than replaces) the existing repeated
        # ``dims`` field, which would corrupt the tensor shape.
        if int(initializer.data_location) == int(TensorProto.EXTERNAL):
            initializer.data_location = TensorProto.DEFAULT
            initializer.ClearField("external_data")
        initializer.raw_data = from_array(values, name=initializer.name).raw_data
        materialized += 1
    return materialized


def get_qwen3_model():
    """Returns the Qwen3-like model from the backend test case collection.

    As a side effect, the retrieved model is written to
    ``{OUTPUT_PREFIX}.onnx`` in the current working directory and reloaded so
    the metadata-only weights come back detached from the backend registry
    before they are materialized.

    Returns:
        The ``ModelProto`` of ``test_cc_shape_inference_big_qwen3_4_layers_like``
        with its local functions inlined and its weights materialized.
    """

    cases = collect_test_cases_by_name(f".*{TEST_CASE_NAME}.*", include_big=True)
    if not cases:
        raise ValueError(f"{TEST_CASE_NAME!r} was not found in backend test cases.")
    filename = f"{OUTPUT_PREFIX}.onnx"
    ol_save(cases[0].model, filename)
    model = ol_load(filename, load_external_data=False)
    model = inliner.inline_local_functions(model)
    del model.graph.value_info[:]
    count = materialize_random_weights(model)
    print(f"-- materialized {count} weight initializer(s)")
    return model


def main() -> None:
    """Benchmarks the initialization step of both backends and reports it."""

    print("-- get the model from the backend tests")
    model = get_qwen3_model()
    print(f"-- model has {len(model.graph.node)} nodes")
    model_bytes = model.SerializeToString()
    print(f"-- serialized model size: {len(model_bytes):,} bytes")

    session_options = onnxruntime.SessionOptions()
    session_options.graph_optimization_level = onnxruntime.GraphOptimizationLevel.ORT_DISABLE_ALL

    def init_onnxruntime() -> None:
        onnxruntime.InferenceSession(
            model_bytes, session_options, providers=["CPUExecutionProvider"]
        )

    def init_onnx_light() -> None:
        ReferenceEvaluator(model)

    print("-- benchmark onnxruntime initialization")
    ort_stats = measure("onnxruntime", init_onnxruntime)
    print("-- benchmark onnx-light initialization")
    onnxl_stats = measure("onnx-light", init_onnx_light)

    results = pandas.DataFrame([ort_stats, onnxl_stats])
    for column in ("median", "avg", "min", "max", "std"):
        results[f"{column} (ms)"] = results[column] * 1e3
    print(results.to_string(index=False))
    results.to_excel(f"{OUTPUT_PREFIX}.xlsx", index=False)

    fig, ax = plt.subplots(figsize=(7, 4))
    ax.bar(results["name"], results["median"] * 1e3, yerr=results["std"] * 1e3, capsize=6)
    ax.set_ylabel("initialization time (ms)")
    ax.set_title(f"Initialization time on {TEST_CASE_NAME}")
    ax.grid(True, axis="y", alpha=0.3)
    fig.tight_layout()
    fig.savefig(f"{OUTPUT_PREFIX}.png")


if __name__ == "__main__":
    main()
