Benchmarks#

A gallery of benchmarks comparing the SIMD-accelerated CPU kernels provided by onnx-light-cpu against other back-ends such as numpy, onnxruntime and onnx-light’s built-in reference kernels.

The Gemm and Attention corpora used by the Gemm and MatMul roadmap are implemented as C++ backend cases in TestMode::BENCHMARK. This is the benchmark framework provided by onnx-light: cases are generated lazily in C++, exposed through CollectTestCases, and consumed by the common benchmark recorder. The Gemm cases live in onnx_light_cpu/backend_test/cases/math/cases_gemm.cc; the Attention cases live in onnx-light’s C++ backend-test registry.

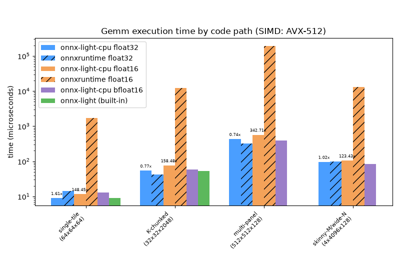

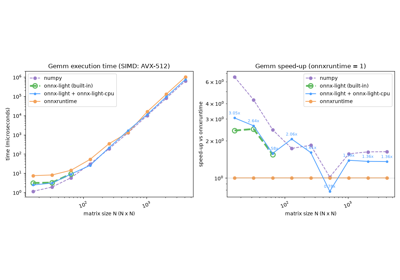

The Gemm corpus contains shape-forced cases for every prepared algorithm: direct (small K), skinny_m, skinny_n, split_k (large K with a small output), and square/transformer shapes (general five-loop). Every shape is registered for each element type the GemmKernel implements – float32, float16 and bfloat16 – so the corpus also measures the fp16/bf16 widen/round-trip overhead. Standalone recorders run on their calling thread. Integration benchmarks compare participant counts through the onnx-light session cpu_execution policy, which owns thread count, affinity, and spin behavior. onnx-light-cpu does not create workers or read thread-control environment variables.

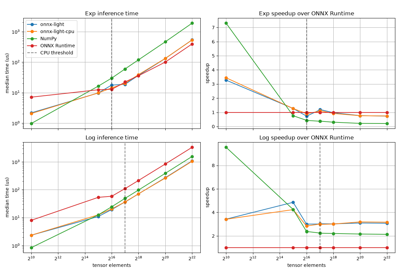

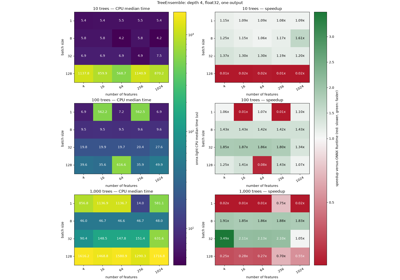

The unary backend corpus samples both sides of the Exp and Log scheduling thresholds. plot_exp_log_benchmark.py visualizes those transitions. plot_tree_ensemble_benchmark.py visualizes representative cases from the maintained TreeEnsemble parity runner; it does not claim backend-test kernel coverage because TreeEnsemble is not registered there.

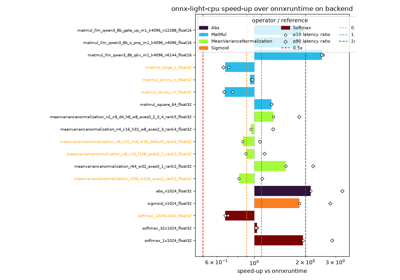

plot_backend_cases_benchmark.py walks a subset of the TestMode::BENCHMARK test_cpu_* backend test cases – covering every operator with an onnx-light-cpu backend test registration (Abs, Exp, Log, Gemm and Not) – and times each one through onnx-light (with onnx-light-cpu’s accelerated kernels registered) and through ONNX Runtime, using the exact same generated model and inputs for both.
