Run a model with the runtime and inspect intermediate results#

onnx_light ships a C++ kernel dispatcher exposed in Python through ReferenceEvaluator. After each run() call the evaluator retains the RuntimeContext used internally; calling events() returns an append-only log of every tensor map mutation: graph initializers seeded on entry, inputs injected by the caller, intermediate values produced by each node kernel and outputs propagated back to the caller.

This example:

builds a small graph with a symbolic batch dimension N, an initializer and three operators (Mul, Add then Reshape) so that one of the intermediate tensors has a shape expressed as an arithmetic expression of N (here 2*N),
runs infer_shapes_model() on it so the expected shape of each intermediate tensor is recorded in graph.value_info,
uses evaluate_expression() to resolve each symbolic dimension to a concrete integer given the actual batch size at runtime,
drives the runtime through ReferenceEvaluator while collecting the event log, with release_intermediates=True so the runtime drops every intermediate tensor as soon as its last consumer has run,
prints the events, illustrating how to peek at intermediate results without re-instrumenting the graph,
isolates the "remove" events to show exactly when each intermediate tensor is released from the runtime tensor map,
cross-checks the runtime-observed shape of every intermediate tensor against the statically inferred (and expression-evaluated) shape,
renders a compact table of the recorded events for visual inspection.

from __future__ import annotations

import numpy as np

from onnx_light.onnx_lib import parser
from onnx_light.onnx_optim.expressions import evaluate_expression
from onnx_light.onnx_optim.shape_inference import infer_shapes_model
from onnx_light.onnx.reference import ReferenceEvaluator
from onnx_light.tools import pretty_onnx

Build a small ONNX model#

The graph multiplies its input by an initializer two, adds the original input back and finally reshapes the result to a 2-column matrix using a -1 placeholder. The intermediate tensors we expect to see in the event log are z = x * two, w = z + x and y = Reshape(w, [-1, 2]). Because the input has the symbolic batch dimension N, shape inference resolves the -1 placeholder of Reshape to the arithmetic expression 2*N (input has N * 4 elements, divided by the fixed inner dimension 2).

model = parser.parse_model(
    '<ir_version: 10, opset_import: ["" : 18]>'
    "agraph (float[N,4] x) => (float[M,2] y) "
    "<float two = {2.0}, int64[2] target_shape = {-1, 2}>"
    "{"
    "  z = Mul(x, two)"
    "  w = Add(z, x)"
    "  y = Reshape(w, target_shape)"
    "}"
)
print(pretty_onnx(model))

opset: domain='' version=18
graph: name='agraph'
input: float[N,4] x
init: float[] two
init: int64[2] target_shape
0: Mul(x, two) -> z
1: Add(z, x) -> w
2: Reshape(w, target_shape) -> y
output: float[M,2] y

Infer the shapes of every intermediate tensor#

infer_shapes_model() walks the graph in topological order, applies the shape-inference rule registered for each operator and writes the inferred element type and shape of every intermediate tensor to graph.value_info. For symbolic dimensions the inferred shape can contain arithmetic expressions over the input parameters (e.g. 2*N for the Reshape output where the -1 placeholder resolves to (N * 4) // 2).

infer_shapes_model(model)


def shape_of(type_proto):
    return tuple(
        d.dim_param if d.dim_param else int(d.dim_value) for d in type_proto.tensor_type.shape.dim
    )


inferred_shapes = {vi.name: shape_of(vi.type) for vi in model.graph.value_info}
for inp in model.graph.input:
    inferred_shapes[inp.name] = shape_of(inp.type)
for out in model.graph.output:
    inferred_shapes[out.name] = shape_of(out.type)

print("Statically inferred shapes (may contain symbolic dimensions):")
for name, shape in inferred_shapes.items():
    print(f"  {name:<6s} -> {shape}")

Statically inferred shapes (may contain symbolic dimensions):
  w      -> ('N', 4)
  z      -> ('N', 4)
  x      -> ('N', 4)
  y      -> ('M', 2)

Resolve symbolic dimensions with `evaluate_expression`#

Once the actual input shape is known, we can resolve every symbolic dimension by binding the input parameters to integers and feeding the resulting context to evaluate_expression(). It supports the arithmetic expressions produced by shape inference (+, -, *, //, %, CeilToInt …) as well as plain integer literals and variable references.

x = np.arange(8, dtype=np.float32).reshape(2, 4)
# ``M`` is the user-declared output dim; shape inference anchors it to
# the Reshape result ``2*N``, so it must be bound alongside ``N`` here.
context = {"N": int(x.shape[0]), "M": 2 * int(x.shape[0])}
print(f"Symbol context: {context}")


def resolve_shape(shape, context):
    resolved = []
    for d in shape:
        if isinstance(d, int):
            resolved.append(d)
        else:
            resolved.append(evaluate_expression(d, context))
    return tuple(resolved)


resolved_shapes = {name: resolve_shape(shape, context) for name, shape in inferred_shapes.items()}
print("Shapes after evaluate_expression:")
for name, shape in resolved_shapes.items():
    print(f"  {name:<6s} -> {shape}")

Symbol context: {'N': 2, 'M': 4}
Shapes after evaluate_expression:
  w      -> (2, 4)
  z      -> (2, 4)
  x      -> (2, 4)
  y      -> (4, 2)

Run the model with `ReferenceEvaluator`#

ReferenceEvaluator wraps the C++ kernel dispatcher and handles all input/output conversions automatically. After run() returns, events() exposes the full event log recorded by the internal RuntimeContext.

release_intermediates=True asks the runtime to drop every intermediate tensor as soon as its last consumer node has run. Each removal is recorded as a "remove" event, so the log captures not only when a value is produced but also when it is freed.

sess = ReferenceEvaluator(model, events_enabled=True, release_intermediates=True)
(y,) = sess.run(None, {"x": x})
print(f"y =\n{y}")

y =
[[ 0.  3.]
 [ 6.  9.]
 [12. 15.]
 [18. 21.]]

Inspect the event log#

events() returns a list of RuntimeEvent entries. Each event carries the action ("add" / "replace" / "remove"), the kind of value ("input", "initializer", "intermediate" or "output"), the tensor name, data_type, shape, the number of element values captured (value_count) and the first few element values themselves.

Each event stores at most a fixed number of element values (currently 8) from the recorded tensor. Tensors with more elements are summarised: data_type is set to -1 and shape is left empty to signal the truncated payload. The total number of events in the log itself is unbounded.

events = sess.events()
print(f"Recorded {len(events)} event(s):")
for ev in events:
    d = ev.as_dict()
    print(
        f"  [{d['action']:<8s} {d['kind']:<12s}] {d['name']:<6s} "
        f"dtype={d['data_type']:<3d} shape={d['shape']} "
        f"values={d.get('values') or d.get('string_values')}"
    )

Recorded 11 event(s):
  [add      input       ] x      dtype=1   shape=[2, 4] values=[0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0]
  [add      initializer ] two    dtype=1   shape=[] values=[2.0]
  [add      initializer ] target_shape dtype=7   shape=[2] values=[-1.0, 2.0]
  [add      intermediate] z      dtype=1   shape=[2, 4] values=[0.0, 2.0, 4.0, 6.0, 8.0, 10.0, 12.0, 14.0]
  [run_node unknown     ]        dtype=0   shape=[] values=[]
  [add      intermediate] w      dtype=1   shape=[2, 4] values=[0.0, 3.0, 6.0, 9.0, 12.0, 15.0, 18.0, 21.0]
  [run_node unknown     ]        dtype=0   shape=[] values=[]
  [remove   unknown     ] z      dtype=0   shape=[] values=[]
  [add      intermediate] y      dtype=1   shape=[4, 2] values=[0.0, 3.0, 6.0, 9.0, 12.0, 15.0, 18.0, 21.0]
  [run_node unknown     ]        dtype=0   shape=[] values=[]
  [remove   unknown     ] w      dtype=0   shape=[] values=[]

Watch intermediate results being removed#

Because the evaluator was created with release_intermediates=True, the runtime frees each intermediate tensor as soon as its last consumer node has executed. Every such release is logged as a "remove" event. Filtering the log by action == "remove" therefore shows precisely when each intermediate value leaves the runtime tensor map — here z is removed right after Add consumes it and w right after Reshape consumes it, while the graph output y is preserved.

removed = [d for d in (ev.as_dict() for ev in events) if d["action"] == "remove"]
print(f"Recorded {len(removed)} removal event(s):")
for d in removed:
    print(f"  {d['name']:<6s} ({d['kind']}) released from the runtime tensor map")

Recorded 2 removal event(s):
  z      (unknown) released from the runtime tensor map
  w      (unknown) released from the runtime tensor map

Cross-check intermediate shapes#

Filtering the event log by kind is the easiest way to recover only the values produced by node kernels — i.e. the intermediate tensors of the graph. For each one we compare the runtime-observed shape against the shape infer_shapes_model() had pre-computed.

print("Intermediate tensors produced by node kernels:")
for ev in events:
    d = ev.as_dict()
    if d["kind"] != "intermediate":
        continue
    runtime_shape = tuple(d["shape"])
    inferred = inferred_shapes.get(d["name"])
    resolved = resolved_shapes.get(d["name"])
    match = "OK" if resolved == runtime_shape else "MISMATCH"
    print(
        f"  {d['name']:<8s} runtime={runtime_shape} inferred={inferred} "
        f"resolved={resolved} [{match}]  values={d.get('values')}"
    )

Intermediate tensors produced by node kernels:
  z        runtime=(2, 4) inferred=('N', 4) resolved=(2, 4) [OK]  values=[0.0, 2.0, 4.0, 6.0, 8.0, 10.0, 12.0, 14.0]
  w        runtime=(2, 4) inferred=('N', 4) resolved=(2, 4) [OK]  values=[0.0, 3.0, 6.0, 9.0, 12.0, 15.0, 18.0, 21.0]
  y        runtime=(4, 2) inferred=('M', 2) resolved=(4, 2) [OK]  values=[0.0, 3.0, 6.0, 9.0, 12.0, 15.0, 18.0, 21.0]

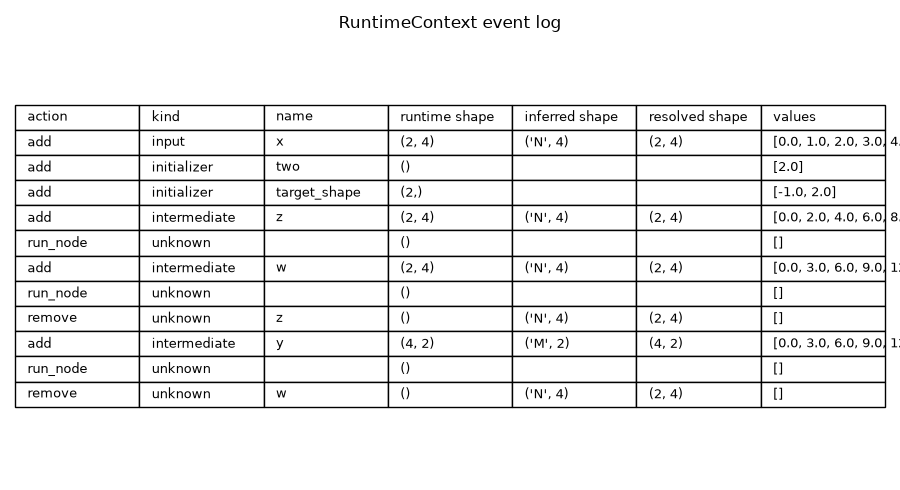

Render the event log as a table#

A simple matplotlib figure is used both as the sphinx-gallery thumbnail and as a compact visual recap of the captured events. The last column shows the statically inferred shape so it can be read alongside the runtime-observed shape.

import matplotlib.pyplot as plt  # noqa: E402

rows = []
for ev in events:
    d = ev.as_dict()
    values = d.get("values") or d.get("string_values") or []
    rows.append(
        [
            d["action"],
            d["kind"],
            d["name"],
            str(tuple(d["shape"])),
            str(inferred_shapes.get(d["name"], "")),
            str(resolved_shapes.get(d["name"], "")),
            str(values),
        ]
    )

fig, ax = plt.subplots(figsize=(9, 1.6 + 0.3 * len(rows)))
ax.set_axis_off()
table = ax.table(
    cellText=rows,
    colLabels=[
        "action",
        "kind",
        "name",
        "runtime shape",
        "inferred shape",
        "resolved shape",
        "values",
    ],
    loc="center",
    cellLoc="left",
    colLoc="left",
)
table.auto_set_font_size(False)
table.set_fontsize(9)
table.scale(1.0, 1.3)
ax.set_title("RuntimeContext event log")
fig.tight_layout()
