Elementwise Abs with runtime SIMD dispatch

This example exercises the SIMD-accelerated Abs kernels provided by onnx-light-cpu from Python. The extension detects the best available instruction set (AVX-512, AVX2, AVX, SSE2, or a scalar fallback) once at runtime and dispatches every call to that implementation.

Each kernel computes the elementwise absolute value of a contiguous 1-D array. The example runs every supported data type (float32, float64, int32 and int64), checks the result against numpy.abs(), and then plots the input/output of the float32 kernel to illustrate the operation.

Setup

Import the compiled extension and report which SIMD level the current CPU provides. The mapping is 0=None, 1=SSE2, 2=AVX, 3=AVX2 and 4=AVX512.

import numpy as np

from onnx_light_cpu.onnx_py._cpukernels import (
    abs,
    detect_simd_level,
    has_cpu_kernels,
)

_SIMD_NAMES = {0: "scalar", 1: "SSE2", 2: "AVX", 3: "AVX2", 4: "AVX-512"}

assert has_cpu_kernels()
level = detect_simd_level()
print(f"CPU kernels available, SIMD level: {level} ({_SIMD_NAMES.get(level, level)})")

CPU kernels available, SIMD level: 4 (AVX-512)

Run every supported data type

A single abs entry point dispatches on the array dtype (just like numpy.abs()) and returns a new array of the same dtype.

dtypes = [np.float32, np.float64, np.int32, np.int64]

rng = np.random.default_rng(0)

for dtype in dtypes:
    if np.issubdtype(dtype, np.floating):
        inp = rng.uniform(-100.0, 100.0, size=1000).astype(dtype)
    else:
        inp = rng.integers(-100, 100, size=1000).astype(dtype)
    out = abs(inp)
    assert np.array_equal(out, np.abs(inp)), dtype
    print(f"{np.dtype(dtype).name:<8} {inp.size} elements -> matches numpy.abs")

float32  1000 elements -> matches numpy.abs
float64  1000 elements -> matches numpy.abs
int32    1000 elements -> matches numpy.abs
int64    1000 elements -> matches numpy.abs

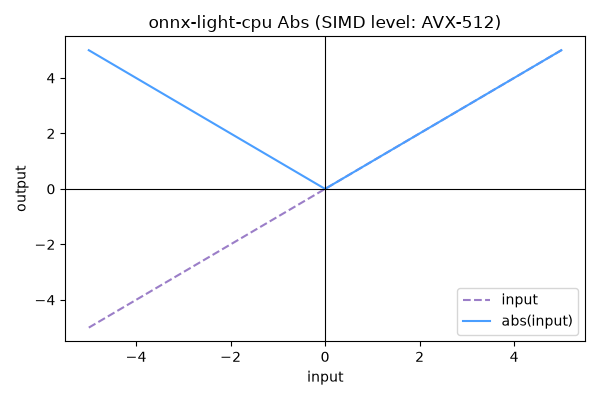

Visualize the float32 kernel

Feed a smooth ramp through the float32 kernel and plot the input against the computed absolute value.

import matplotlib.pyplot as plt

x = np.linspace(-5.0, 5.0, 201).astype(np.float32)
y = abs(x)

fig, ax = plt.subplots(figsize=(6, 4))
ax.plot(x, x, label="input", linestyle="--", color="#9b7ec8")
ax.plot(x, y, label="abs(input)", color="#4a9eff")
ax.axhline(0.0, color="black", linewidth=0.8)
ax.axvline(0.0, color="black", linewidth=0.8)
ax.set_title(f"onnx-light-cpu Abs (SIMD level: {_SIMD_NAMES.get(level, level)})")
ax.set_xlabel("input")
ax.set_ylabel("output")
ax.legend()
fig.tight_layout()
plt.show()
