Round-trip every image format: save with PIL, reload with ONNX

This example builds a small synthetic RGB image, saves it to memory in every image format supported by PIL (Pillow), and reloads each encoded bytestream with the ONNX ImageDecoder operator provided by onnx-light-kernel-images.

The kernels are registered with the onnx-light dispatch table (register_image_kernels()) and then exercised through a one-node ImageDecoder ONNX model executed by onnx-light’s ReferenceEvaluator. The encoded file bytes are fed as a uint8 input tensor and the decoded channel-last (H, W, C) uint8 image is read back from the output.

For lossless formats (BMP, PNG, PNM/PPM, and TIFF — including the PackBits, LZW and Deflate compressions) the decoded pixels must match the original array exactly. For the remaining formats (JPEG, JPEG2000 and WebP) the example reports the mean absolute error instead of asserting an exact match: JPEG is lossy, while JPEG2000 and WebP are decoded through the optional libopenjp2 / libwebp runtime libraries and may apply a color transform. When those libraries are not available on the machine the decoder returns an empty (0, 0, C) matrix (as described by the ONNX ImageDecoder schema) and the example simply notes it.

The decoder is driven through a small ONNX model:

node = helper.make_node("ImageDecoder", ["encoded"], ["image"], pixel_format="RGB")
...
sess = ReferenceEvaluator(model)
(image,) = sess.run(None, {"encoded": np.frombuffer(encoded_bytes, np.uint8)})

Setup

Register the kernels once, build a one-node ImageDecoder model, and create a deterministic test image with a few fully-saturated colors so that lossless round-trips can be compared exactly.

import io

import numpy as np
from PIL import Image

from onnx_light.onnx import TensorProto, helper
from onnx_light.onnx.reference import ReferenceEvaluator

from onnx_light_kernel_images.onnx_py._imgpykernels import register_image_kernels

register_image_kernels()


def make_image_decoder_model(pixel_format="RGB"):
    """Builds a single-node ``ImageDecoder`` ONNX model for ``pixel_format``."""
    node = helper.make_node("ImageDecoder", ["encoded"], ["image"], pixel_format=pixel_format)
    graph = helper.make_graph(
        [node],
        "image_decoder",
        [helper.make_tensor_value_info("encoded", TensorProto.UINT8, [None])],
        [helper.make_tensor_value_info("image", TensorProto.UINT8, [None, None, None])],
    )
    return helper.make_model(graph, opset_imports=[helper.make_opsetid("", 20)])


sess = ReferenceEvaluator(make_image_decoder_model("RGB"))


def decode_image(encoded):
    """Decodes ``encoded`` bytes through the ImageDecoder model."""
    (image,) = sess.run(None, {"encoded": np.frombuffer(encoded, dtype=np.uint8)})
    return image


height, width = 8, 12
original = np.zeros((height, width, 3), dtype=np.uint8)
original[:, :, 0] = np.linspace(0, 255, width, dtype=np.uint8)  # red ramp
original[:, :, 1] = np.linspace(0, 255, height, dtype=np.uint8)[:, None]  # green ramp
original[0, 0] = (255, 0, 0)
original[0, -1] = (0, 255, 0)
original[-1, 0] = (0, 0, 255)
original[-1, -1] = (255, 255, 255)

pil_image = Image.fromarray(original, "RGB")

Encode with PIL, decode with the ONNX model

Each entry pairs a Pillow save format (and optional keyword arguments) with a flag telling whether the round-trip is expected to be lossless.

cases = [
    ("BMP", {"format": "BMP"}, True),
    ("PNG", {"format": "PNG"}, True),
    ("PNM (P6)", {"format": "PPM"}, True),
    ("TIFF (raw)", {"format": "TIFF", "compression": "raw"}, True),
    ("TIFF (packbits)", {"format": "TIFF", "compression": "packbits"}, True),
    ("TIFF (lzw)", {"format": "TIFF", "compression": "tiff_lzw"}, True),
    ("TIFF (deflate)", {"format": "TIFF", "compression": "tiff_adobe_deflate"}, True),
    ("JPEG", {"format": "JPEG", "quality": 95}, False),
    ("JPEG2000", {"format": "JPEG2000"}, False),
    ("WebP", {"format": "WEBP", "lossless": True}, False),
]

results = []
for name, save_kwargs, lossless in cases:
    buffer = io.BytesIO()
    try:
        pil_image.save(buffer, **save_kwargs)
    except (KeyError, OSError) as exc:
        # Pillow was built without support for this format on this machine.
        print(f"{name:<18} skipped (Pillow cannot save it: {exc})")
        continue

    encoded = buffer.getvalue()
    decoded = decode_image(encoded)

    if decoded.shape[0] == 0:
        # The optional runtime library (libopenjp2 / libwebp) is unavailable,
        # so the ImageDecoder returned the schema-mandated empty matrix.
        print(f"{name:<18} runtime decoder unavailable -> empty {decoded.shape}")
        continue

    if lossless:
        assert decoded.shape == original.shape, (name, decoded.shape)
        assert np.array_equal(decoded, original), name
        print(f"{name:<18} {len(encoded):>5} bytes -> {decoded.shape} exact match")
    else:
        mae = float(np.abs(decoded.astype(int) - original.astype(int)).mean())
        print(f"{name:<18} {len(encoded):>5} bytes -> {decoded.shape} MAE={mae:.2f}")

    results.append((name, decoded))

BMP                  342 bytes -> (8, 12, 3) exact match
PNG                  114 bytes -> (8, 12, 3) exact match
PNM (P6)             300 bytes -> (8, 12, 3) exact match
TIFF (raw)           428 bytes -> (8, 12, 3) exact match
TIFF (packbits)    runtime decoder unavailable -> empty (0, 0, 3)
TIFF (lzw)         runtime decoder unavailable -> empty (0, 0, 3)
TIFF (deflate)     runtime decoder unavailable -> empty (0, 0, 3)
JPEG                 767 bytes -> (8, 12, 3) MAE=11.19
JPEG2000             435 bytes -> (8, 12, 3) MAE=0.00
WebP                  88 bytes -> (8, 12, 3) MAE=0.00

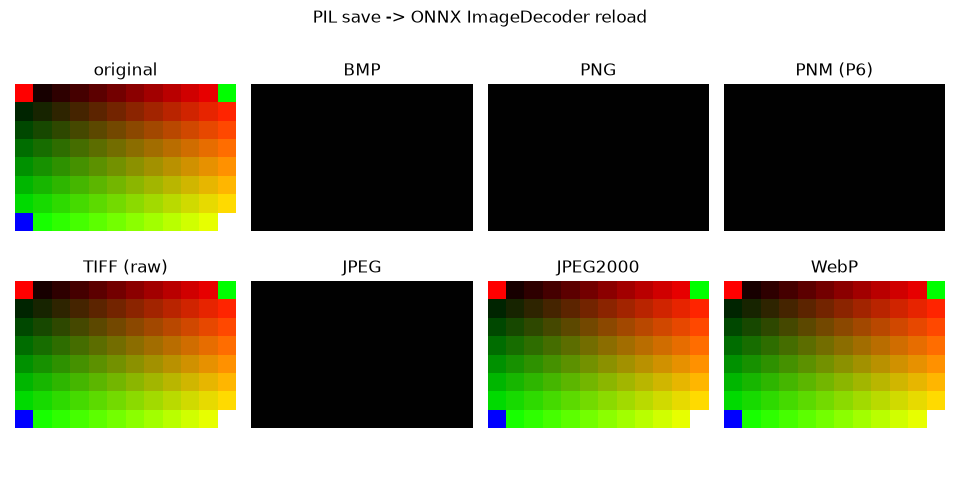

Visualize the decoded images

Every decoded array is a channel-last (H, W, C) uint8 image, so it can be handed straight to matplotlib.pyplot.imshow().

import matplotlib.pyplot as plt

ncols = 4
nrows = (len(results) + 1 + ncols - 1) // ncols
fig, axes = plt.subplots(nrows, ncols, figsize=(2.4 * ncols, 2.4 * nrows))
axes = np.atleast_1d(axes).ravel()

axes[0].imshow(original)
axes[0].set_title("original")
for ax, (name, decoded) in zip(axes[1:], results, strict=False):
    ax.imshow(decoded)
    ax.set_title(name)
for ax in axes:
    ax.set_axis_off()

fig.suptitle("PIL save -> ONNX ImageDecoder reload")
fig.tight_layout()
plt.show()
